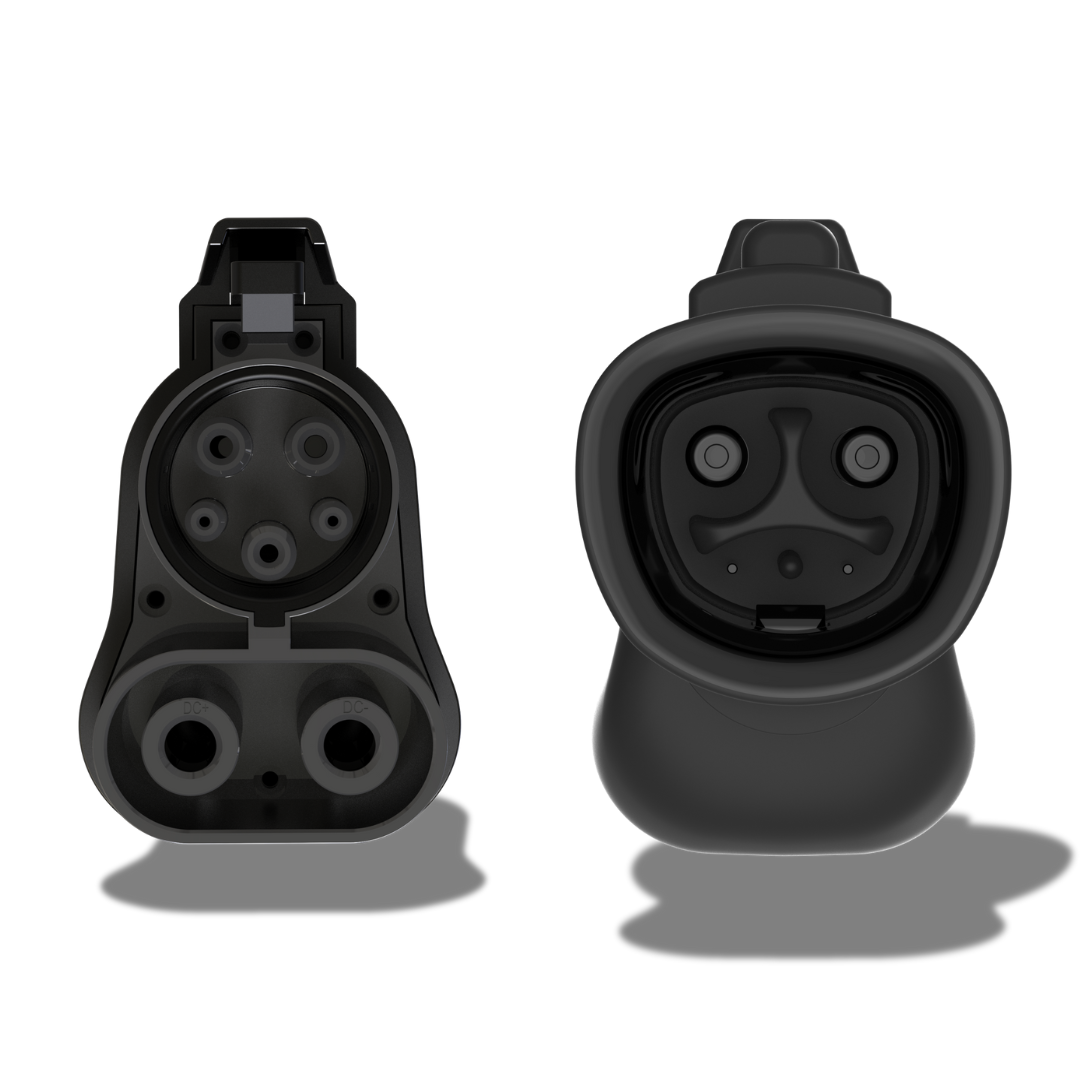

The most preferred NACS to CCS1 adapter across North America.

Compatible with Ford, Rivian, GM (Chevrolet, GMC, Hummer, Cadillac), Volvo, Polestar, Nissan, Mercedes-Benz, Hyundai, Genesis, Lucid, Kia, Honda, Acura, Porsche, Audi, Honda, Acura, Subaru Solterra, Toyota BZ4X, VW ID. 4, VW ID. Buzz and BMW

Key Features :

• Safety and Security: The adapter features a single locking mechanism : The top latch ensures proper interlock between the adapter and the vehicle's charge port. The top locking mechanism (CCS1 latch) controls through a set of springs the NACS side locking pin. If the adapter is locked by the charge port's locking mechanism, the NACS connector can't be removed from the adapter.
• Protection : IP54 (mating) & IP67 (enclosing).
• No restrictions : NACS DC chargers in North America.

Requirements :

• For CCS1 port equipped vehicles
• Any NACS level 3 DC charging station (for SCs - only V3 and V4 are compatible)

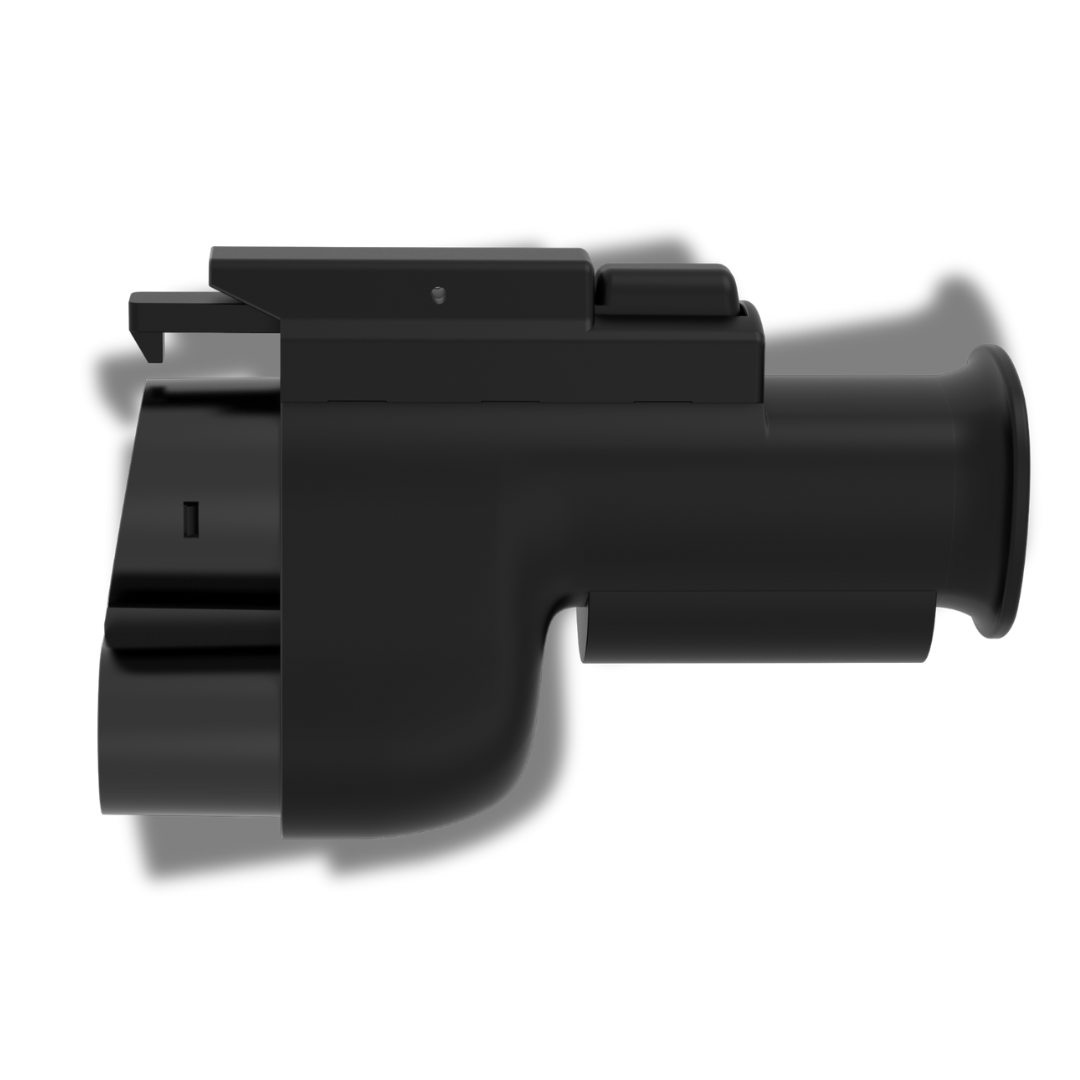

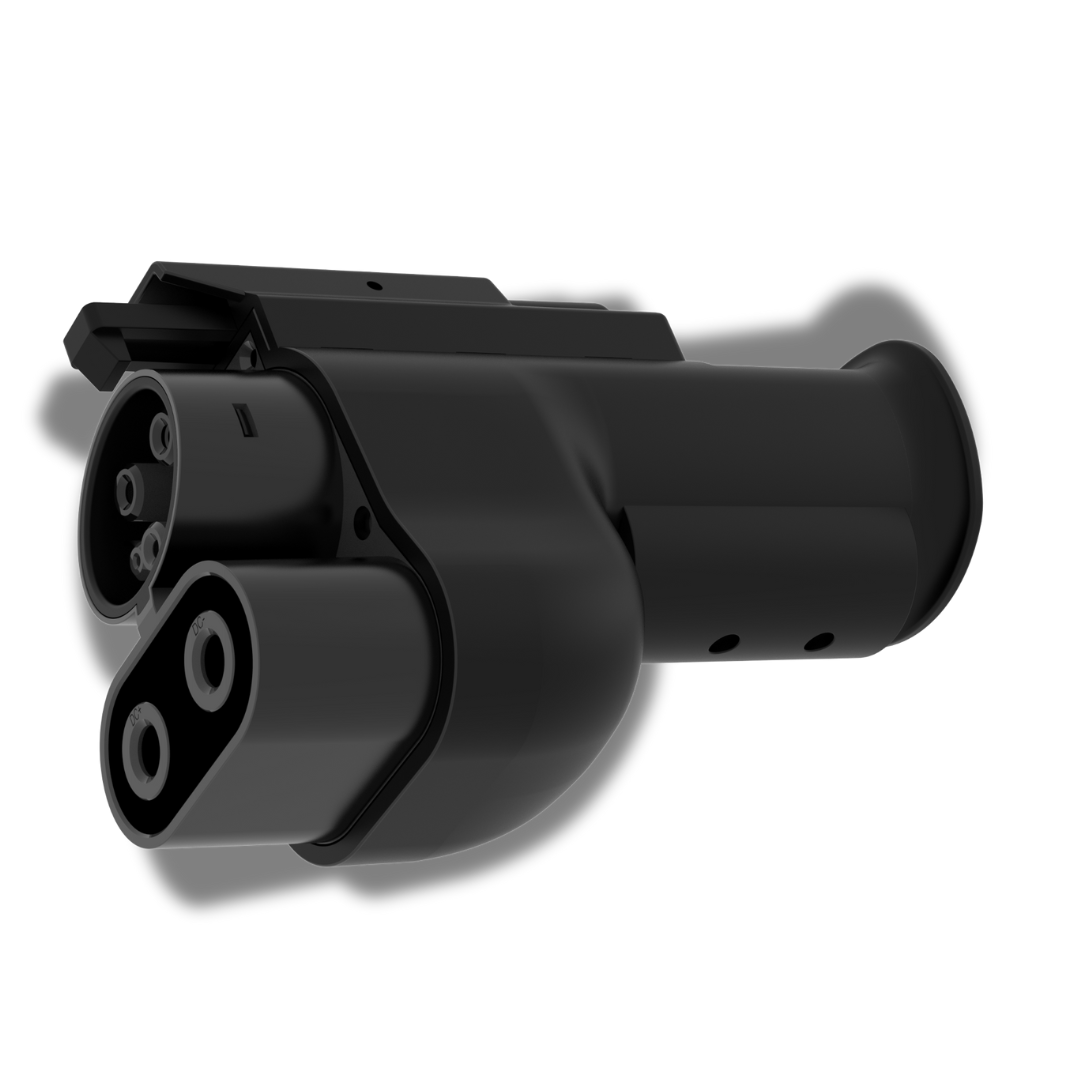

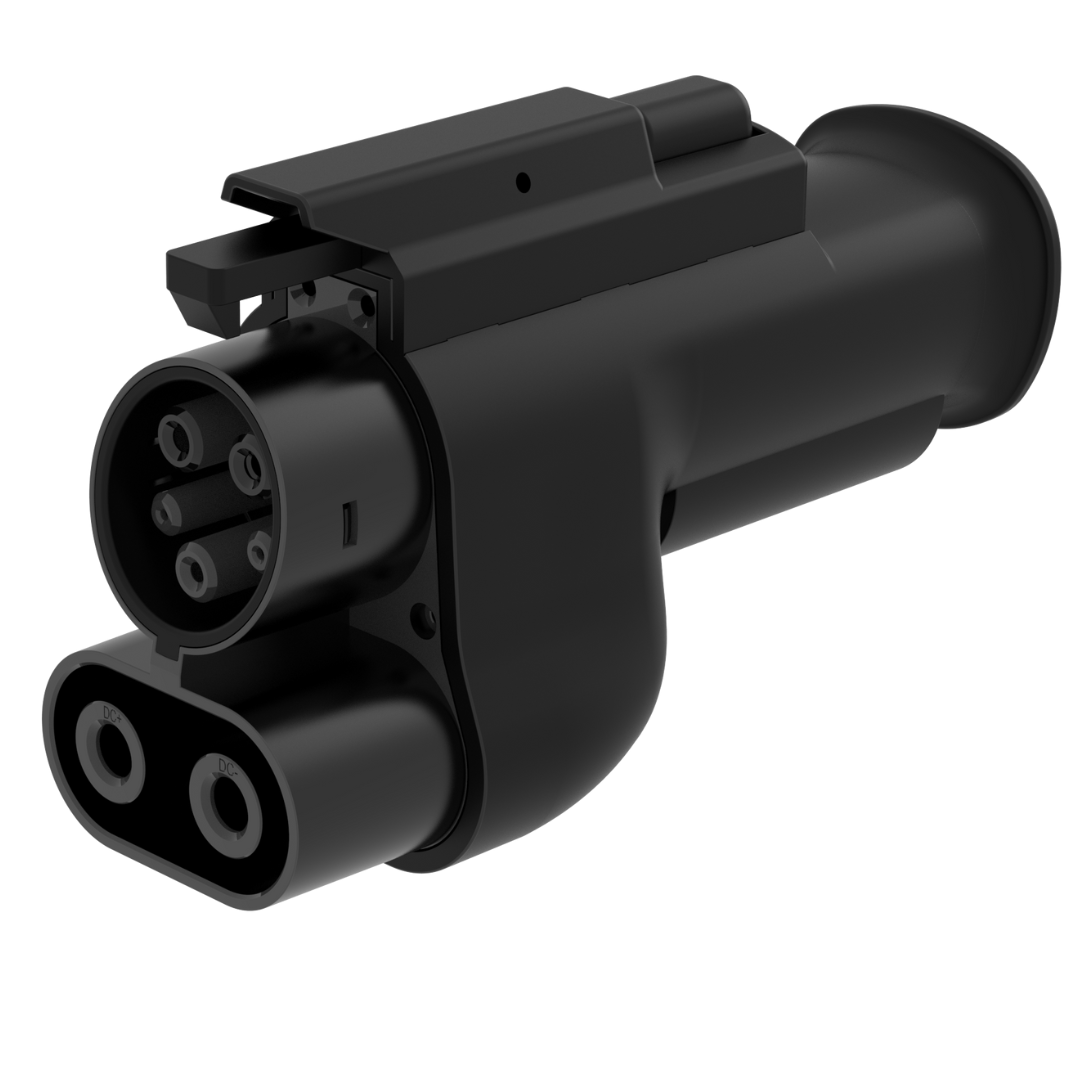

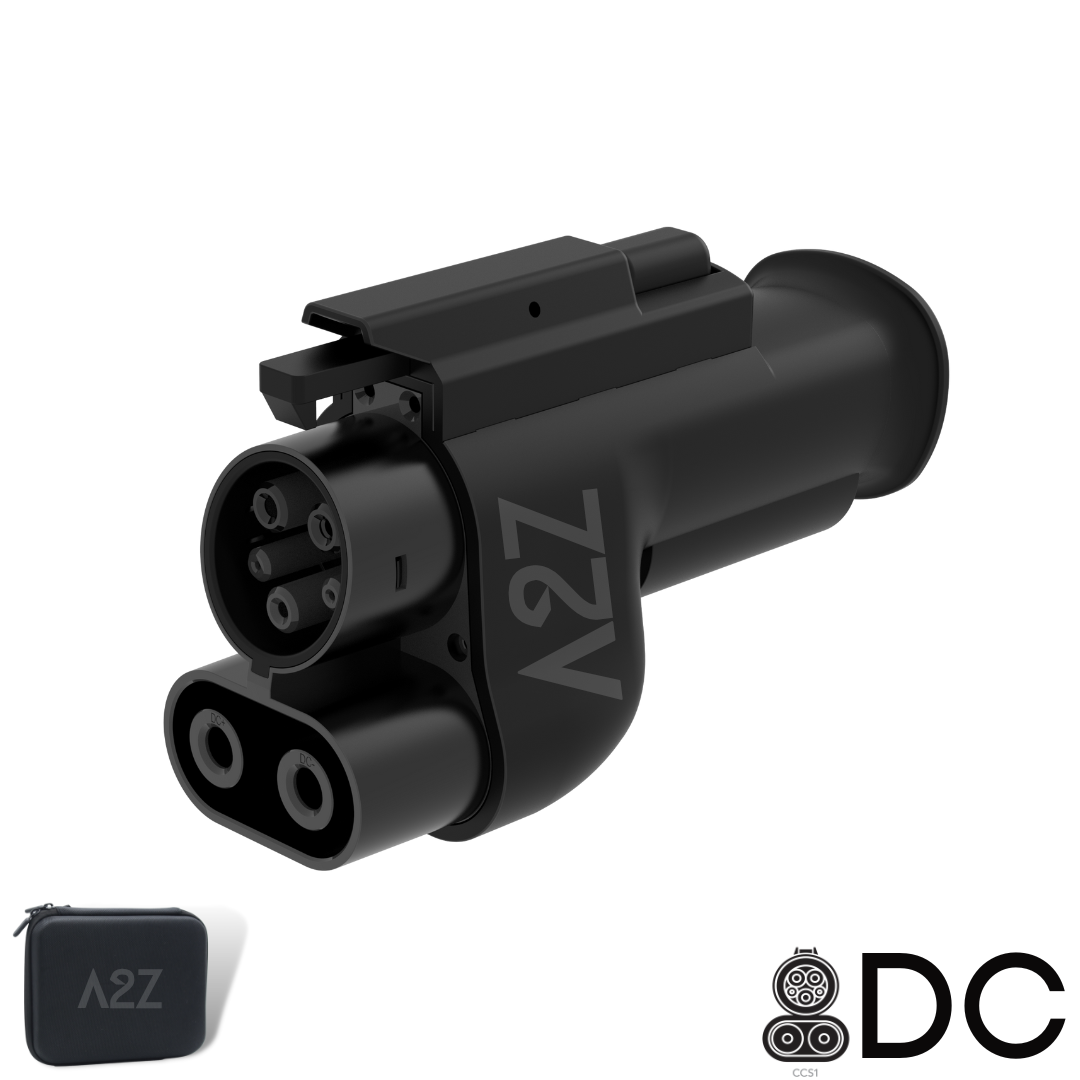

A2Z EV proudly introduces the market's premier aftermarket NACS to CCS1 adapter, specifically designed for North American electric vehicles. With our adapter, your vehicle is now compatible with any NACS DC fast charging station.

Dedicated to precision, our design prioritizes the seamless integration with your vehicle, ensuring utmost safety and compatibility.

For added safety, the A2Z Typhoon Plug incorporates two temperature sensor switches. The first sensor derates the charging process upon reaching a certain temperature, while the second sensor halts charging, the temperature are strategically placed within the adapter. Charging can resume once the temperature normalizes and the adapter is reconnected. It's worth noting that during real-life testing, thermal shutdown was never reached.

Specifications :

• Rated Current : With Liquid cooled cables : up to 500A // Non-liquid cooled cables : 400A.
• Rated Voltage : 1000VDC.

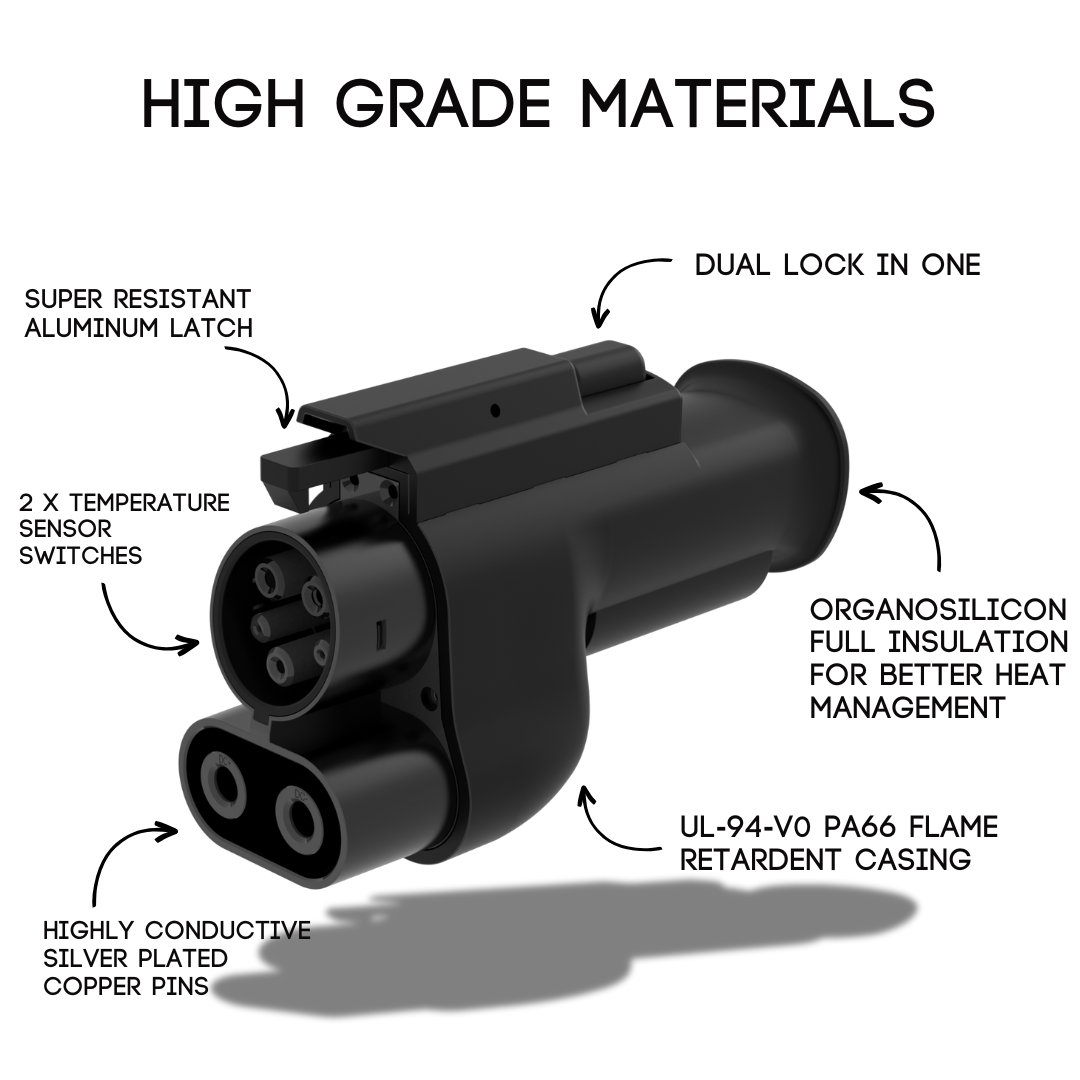

• Conductor Material : Silver plated copper.
• Contact resistance : 5 mΩ.
• Shell Material : UL-94-V0 PA66.
• Operating Temperature : -30°C to 50°C.
• Thermal monitoring : Dual over-temperature sensor switches

• Sealing gasket : Silicon rubber.
• Locking : Dual locking mechanism in one.
• Security : Locks into the vehicle while charging (if the vehicle incorporates a charge port locking pin).
• Enclosure Type : Type 3R


For more detailed specs, contact us.

Product certifications :

• UL2252 certification in progress - passed all tests, release of certificate soon.
• FCC certification (DL-20230705008C).

Instruction manual

Warranty: Enjoy a 12-month warranty against manufacturing defects. Note: Warranty doesn't cover misuse, mishandling, negligence, accidents, or modifications.

Our warranty only covers manufacturing defects.
Consult the warranty section for more informations.
Please note that third-party adapters, including our NACS-CCS1 adapter, are not currently officially authorized for use on Tesla® Superchargers™. Ensure your vehicle brand has access to the network before purchasing. This adapter is also compatible with 3rd party NACS DC chargers such as ChargePoint and EVgo.

Our Products Are Partially Assembled and Tested in Canada 🍁
